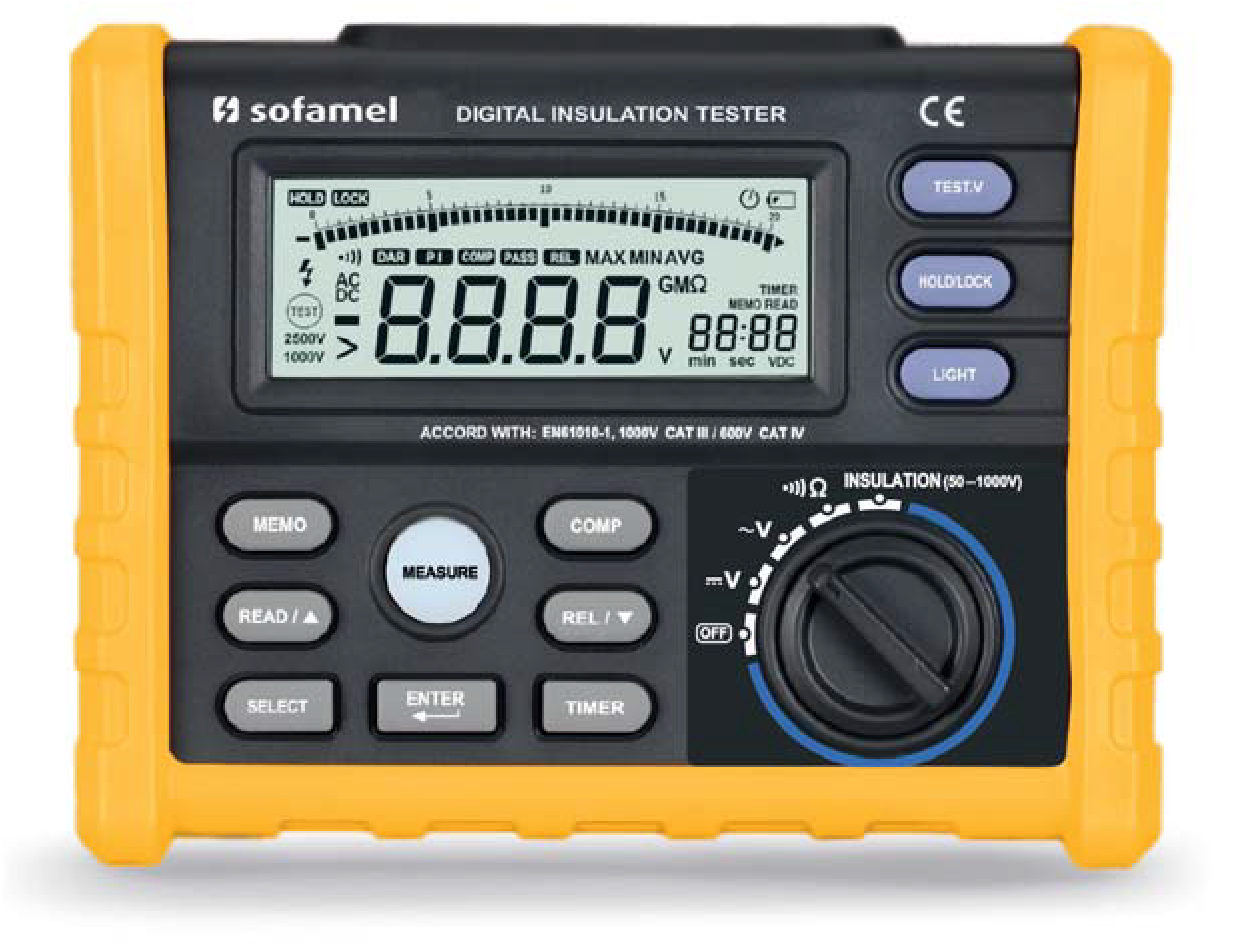

Digital insulation tester

Used to measure the quality of the electrical insulation of cables, motors, transformers, etc. in new installations and during both basic and specialist maintenance. It also detects DC voltage, AC voltage and performs continuity checks. Designed and manufactured to comply with the safety requirements of IEC61010-1 for electronic test instruments.

Technical information

Display: LCD with backlight
Resistance Range:  0.01 MΩ – 10.00 GΩ
Insulation Tests:  50 V, 100 V, 250 V, 500 V and 1000 V
Automatic power off to save energy
Data storage
Timer function for insulation test
Lock function for insulation test
Power supply:  6 x 1.5 V AA batteries
Dimensions: 190 × 145 × 70 mm
Weight:  855 g (without batteries)

Supplied with a case for transport and storage.
According with standards EN61010-1, EN61557-1, EN61326-1 CAT. Ⅲ 1000V CAT. Ⅳ 600V
