NVENT CADDY SPEED LINK SLK SYSTEM
PPI are a proud nVent CADDY distributor across Queensland and the Pacific Islands. With our extensive product knowledge, our partnership with CADDY gives our customers the confidence that we can cater a solution for your fixing and fasteners.
If there is a particular application you require, contact the team now and we can design a solution using the thousands of products CADDY has to offer.
Download product catalogue here.

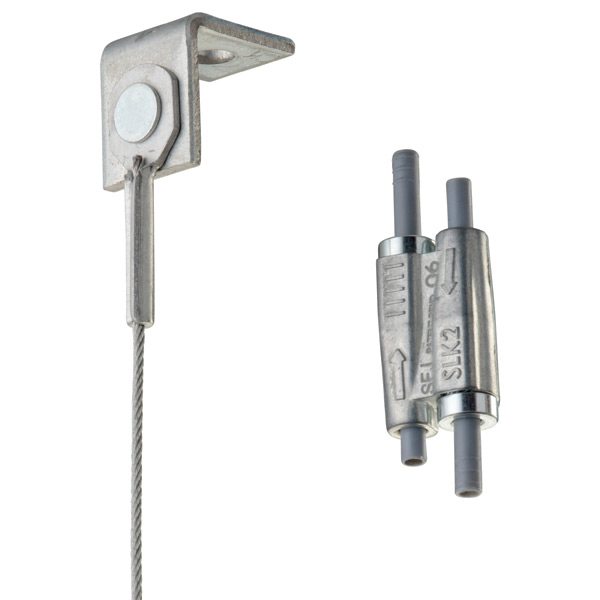

NVENT CADDY SPEED LINK SLK WITH ANGLE BRACKET (Wire Rope Diameter: 2 mm)
| Part Number | Article Number | Wire Rope Length | A |
|---|---|---|---|
| SLK2L3AB | 196530 | 3 m | 22.6 mm |
| SLK2L5AB | 196531 | 5 m | 22.6 mm |
NVENT CADDY SPEED LINK SLK WITH ANGLE BRACKET (Wire Rope Diameter: 3 mm)
| Part Number | Article Number | Wire Rope Length | A |
|---|---|---|---|
| SLK3L10AB | 196716 | 10 m | 22.6 mm |
NVENT CADDY SPEED LINK SLK WITH HOOK
| Part Number | Article Number | Wire Rope Length(m) | A(mm) |
|---|---|---|---|
| SLK15L1 | 196508 | 1 | 48 |
| SLK15L2 | 196509 | 2 | 48 |
| SLK15L3 | 196510 | 3 | 48 |
| SLK15L5 | 196511 | 5 | 48 |
| SLK15L10 | 196513 | 10 | 48 |
NVENT CADDY SPEED LINK SLK WITH HOOK (Wire Rope Diameter: 2.0 mm)
| Part Number | Article Number | Wire Rope Length(m) | A(mm) |
|---|---|---|---|
| SLK2L1 | 196537 | 1 | 57 |
| SLK2L2 | 196538 | 2 | 57 |
| SLK2L3 | 196539 | 3 | 57 |
| SLK2L5 | 196540 | 5 | 57 |
| SLK2L10 | 196542 | 10 | 57 |
NVENT CADDY SPEED LINK SLK WITH HOOK (Wire Rope Diameter: 3.0 mm)
| Part Number | Article Number | Wire Rope Length(m) | A(mm) |
|---|---|---|---|
| SLK3L2 | 196701 | 2 | 57.6 |
| SLK3L3 | 196702 | 3 | 57.6 |
| SLK3L5 | 196703 | 5 | 57.6 |
| SLK3L10 | 196705 | 10 | 57.6 |
NVENT CADDY SPEED LINK SLK WITH THREADED STUD END (Wire Rope Diameter: 2 mm)
| Part Number | Article Number | Wire Rope Length | Rod SizeRS |
|---|---|---|---|
| SLK2L3SEM8 | 196561 | 3 m | M8 |
| SLK2L5SEM8 | 196563 | 5 m | M8 |
NVENT CADDY SPEED LINK SLK WITH THREADED STUD END (Wire Rope Diameter: 3 mm)
| Part Number | Article Number | Wire Rope Length | Rod SizeRS |
|---|---|---|---|
| SLK3L2SEM10 | 196718 | 2 m | M10 |
| SLK3L3SEM10 | 196719 | 3 m | M10 |
| SLK3L5SEM10 | 196720 | 5 m | M10 |
NVENT CADDY SPEED LINK SLK WITH WEDGE ANCHOR
| Part Number | Article Number | Wire Rope Length | LengthL |
|---|---|---|---|
| SLK2L2WA6 | 196734 | 2 m | 63.5 mm |
| SLK2L3WA6 | 196735 | 3 m | 63.5 mm |
| SLK2L5WA6 | 196736 | 5 m | 63.5 mm |
| SLK2L7WA6 | 196737 | 7 m | 63.5 mm |
| Drill Bit Diameter | Drill Hole Depth | Embedment Depth |
|---|---|---|
| 6 mm | 60 mm | 55 mm Min |
NVENT CADDY SPEED LINK SLK WITH Y-TOGGLE
| Part Number | Article Number | Wire Rope Length | Wire Rope "Y" LengthYL |
|---|---|---|---|
| SLK2Y300L2 | 196552 | 2 m | 0.3 m |
| HeightH | WidthW | ThicknessT | Anglea |
|---|---|---|---|
| 55 mm | 19 mm | 12.5 mm | 90° Max |
NVENT CADDY SPEED LINK SLK LOCKING DEVICE
| Part Number | Article Number | Wire Rope Diameter | HeightH |
|---|---|---|---|
| SLK2C200 | 196600 | 1.5 – 2.0 mm | 55 mm |
| SLK3C200 | 196730 | 3.0 mm | 62 mm |
WIRE SPOOL
| Part Number | Article Number | Wire Rope Diameter | Length |
|---|---|---|---|
| SLC2L1000SP | 196002 | 2 mm | 300 m |
| SLC3L1000SP | 196003 | 3 mm | 300 m |
