STRUCTURAL EARTHING
It can be highly effective to use the integral elements of a structure to add to the overall result. This means tying in structural footings, concrete reinforced columns, I-beams, fence posts and other solid structural elements.
If you can’t find your specific product requirement, please call us on 07 3734 7159, or send an email to sales@ppindustries.com.au
WELDABLE EARTHING PLATES (SINGLE HOLE - 12MM THREAD)
| PART # | DESCRIPTION |
|---|---|
| PPI-0.5X70DB12BL | DB12 PLATE to 0.5MTR 70MM2 EARTH CABLE |
| PPI-1X70DB12BL | DB12 PLATE to 1MTR 70MM2 EARTH CABLE |
| PPI-2X70DB12BL | DB12 PLATE to 2MTR 70MM2 EARTH CABLE |
| PPI-3X70DB12BL | DB12 PLATE to 3MTR 70MM2 EARTH CABLE |
| PPI-1X120DB12BL | DB12 PLATE to 1MTR 120MM2 EARTH CABLE |
| PPI-2X120DB12BL | DB12 PLATE to 2MTR 120MM2 EARTH CABLE |
| PPI-3X120DB12BL | DB12 PLATE to 3MTR 120MM2 EARTH CABLE |
WELDABLE EARTHING PLATES (DOUBLE HOLE 1/2" THREAD)
| PART # | DESCRIPTION |
|---|---|
| PPI-0.5X70B1622BL | B162-2Q PLATE to 0.5MTR 70MM2 EARTH CABLE |
| PPI-1X70B1622BL | B162-2Q PLATE to 1MTR 70MM2 EARTH CABLE |
| PPI-2X70B1622BL | B162-2Q PLATE to 2MTR 70MM2 EARTH CABLE |
| PPI-3X70B1622BL | B162-2Q PLATE to 3MTR 70MM2 EARTH CABLE |
| PPI-1X120B1622 | B162-2Q PLATE to 1MTR 120MM2 EARTH CABLE |
| PPI-2X120B1622BL | B162-2Q PLATE to 2MTR 120MM2 EARTH CABLE |
| PPI-3X120B1622 | B162-2Q PLATE to 3MTR 120MM2 EARTH CABLE |
Rebar Clamps (Suitable for Direct Burial, High Strength Bronze Alloy)
| Part # | Rebar Size | Configuration | Min. Cond Size | Max. Cond Size |
|---|---|---|---|---|
| PPI RBK16 | 12 - 25 mm | Parallel | 6 mm² | 25 mm2 |
| PPI RBK17 | 12 - 25 mm | Perpindicular | 6 mm² | 25 mm2 |
| PPI RBC818 | 8-18 mm | Double Bolted | 10mm² | 95 mm2 |
| PPI RBC1836 | 18-36 mm | Double Bolted | 10mm² | 95mm² |
Earth Boss (Welded Bond Connection Point - 50mm long)
| Part # | Material | ∅ | TS |
|---|---|---|---|
| PPI-EBOSS-MS | Mild Steel | 50 mm | M10 |
| PPI-EBOSS-SS | Stainless Steel | 50 mm | M10 |

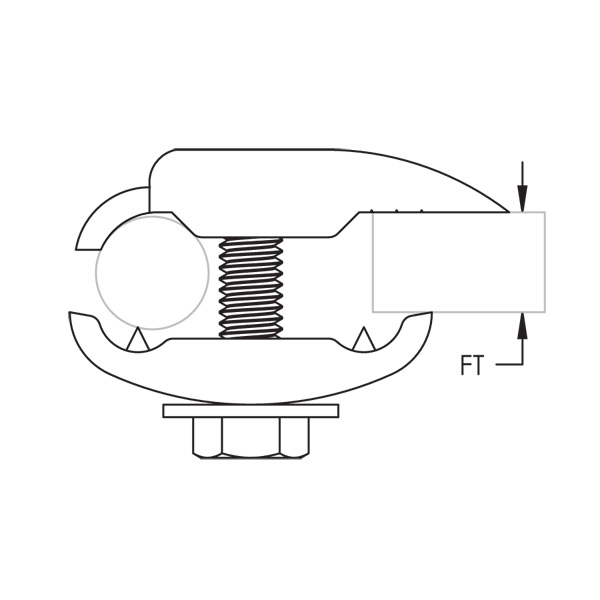

Beam Bonding Clamps (Clamp Cable to Flat Metal I-Beam, Angle, Channel)
| Part # | FT | Depth | Width | Weight |
|---|---|---|---|---|
| PPI BBC559 | 6.4 mm Max | 57.15 mm | 40.6 mm | 0.175 kg |
| PPI BBC559L | 6.4 mm Max | 57.15 mm | 40.6 mm | 0.175 kg |

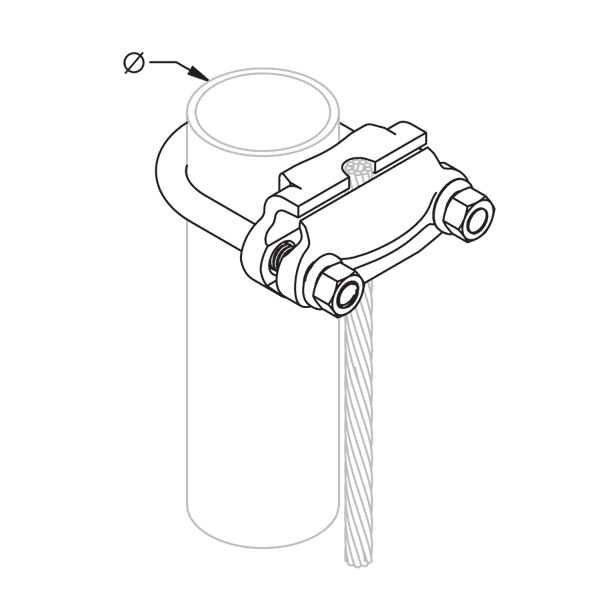

Fence Clamps - Single Conductor (Tinned Cast Bronze, Stainless Steel Hardware)
| Part # | Fence Post Size | Conductor Range | Complies With | Certifications |
|---|---|---|---|---|
| FC073 | 1 1/2" (48 mm) | 16 mm² - 70 mm² | – | – |
| FC074 | 1 1/2" (48 mm) | 50 mm² - 120 mm² | – | – |
| FC075 | 2" (60 mm) | 16 mm² - 70 mm² | IEC® 62561-1 | cULus |
| FC076 | 2" (60 mm) | 50 mm² - 120 mm² | IEC® 62561-1 | – |
| FC078 | 2 1/2" (73 mm) | 16 mm² - 120 mm² | – | – |
| FC079 | 3" (89 mm) | 16 mm² - 70 mm² | – | – |
| FC080 | 3" (89 mm) | 50 mm² - 120 mm² | – | – |
| FC082 | 3 1/2" (102 mm) | 16 mm² - 120 mm² | – | – |
Fence Clamps - Double Conductor (Tinned Cast Bronze, Stainless Steel Hardware)
| Part Number | Fence Post Size | Conductor Range | Complies With |
|---|---|---|---|
| PPI FC076DH | 2" (60 mm) | 50 mm² - 120 mm² | – |
| PPI FC078DH | 2 1/2" (73 mm) | 16 mm² - 120 mm² | – |
| PPI FC082DH | 3 1/2" (102 mm) | 16 mm² - 120 mm² | – |
