10102 TL Copper cable lug long barrel

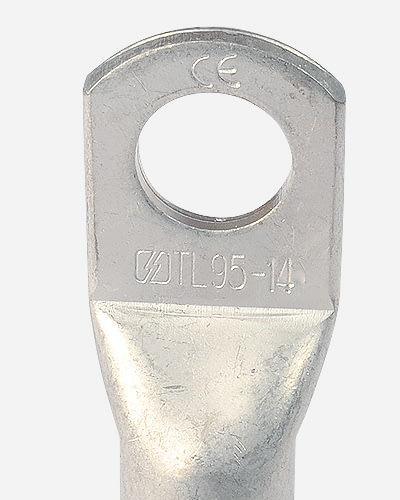

TL cable lug manufactured from electrolytic copper tubing with a tin-plated surface finish to improve electrical contact. The longer barrel length ensures a better electrical connection in more adverse conditions.
Technical specifications
Download spec sheet| Code | Ref. | Section (mm²) | ØI | L | ØT | A | C1 | C2 | Kg x100 | Bag | Box |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 006270 | TL-10/6 | 10 | 4.7 | 35 | 6.4 | 11.9 | 7.0 | 6.0 | 0.492 | 100 | 600 |
| 006280 | TL-10/8 | 38 | 8.3 | 15.0 | 8.0 | 8.0 | 0.513 | 100 | 600 | ||
| 006320 | TL-16/6 | 16 | 5.6 | 39 | 6.4 | 11.9 | 7.0 | 6.0 | 0.685 | 100 | 400 |
| 006330 | TL-16/8 | 41.5 | 8.3 | 15.0 | 8.0 | 7.5 | 0.691 | 100 | 400 | ||
| 006370 | TL-25/8 | 25 | 7.1 | 50 | 8.3 | 15.0 | 8.5 | 7.5 | 1.128 | 50 | 250 |
| 006380 | TL-25/10 | 55 | 10.5 | 18.0 | 11.0 | 10.0 | 1.193 | 50 | 200 | ||
| 006420 | TL-35/8 | 35 | 8.7 | 53 | 8.3 | 15.7 | 9.0 | 8.0 | 1.685 | 50 | 150 |
| 006430 | TL-35/10 | 57 | 10.5 | 19.0 | 11.0 | 10.0 | 1.765 | 50 | 150 | ||
| 006520 | TL-50/10 | 50 | 9.8 | 63 | 10.5 | 20.0 | 11.0 | 10.0 | 2.372 | 20 | 120 |
| 006530 | TL-50/12 | 67 | 13.0 | 21.0 | 13.0 | 12.0 | 2.402 | 20 | 100 | ||
| 006580 | TL-70/10 | 70 | 11.5 | 69 | 10.5 | 21.5 | 11.0 | 10.0 | 3.600 | 10 | 40 |
| 006590 | TL-70/12 | 71 | 13.0 | 21.5 | 12.0 | 11.0 | 3.561 | 10 | 40 | ||
| 006650 | TL-95/12 | 95 | 13.5 | 79 | 13.0 | 24.7 | 12.0 | 12.0 | 5.260 | 10 | 40 |
| 006660 | TL-95/14 | 83 | 14.5 | 24.7 | 15.0 | 13.0 | 5.137 | 10 | 40 | ||
| 006670 | TL-95/16 | 86 | 16.5 | 27.0 | 16.0 | 15.0 | 5.191 | 10 | 40 | ||
| 006710 | TL-120/12 | 120 | 15.6 | 87 | 13.0 | 28.9 | 14.0 | 12.0 | 8.231 | 10 | 30 |
| 006720 | TL-120/14 | 91 | 14.5 | 28.9 | 16.0 | 14.0 | 8.630 | 10 | 30 | ||
| 006730 | TL-120/16 | 95 | 16.5 | 28.9 | 17.0 | 16.0 | 8.834 | 10 | 30 | ||
| 006760 | TL-150/12 | 150 | 16.5 | 99 | 13.0 | 30.4 | 16.0 | 14.0 | 10.243 | 10 | 30 |
| 006770 | TL-150/14 | 103 | 14.5 | 30.4 | 18.0 | 16.0 | 10.290 | 10 | 30 | ||
| 006780 | TL-150/16 | 103 | 16.5 | 30.4 | 18.0 | 16.0 | 10.423 | 10 | 30 | ||
| 006810 | TL-185/12 | 185 | 18.8 | 108 | 13.0 | 34.0 | 16.0 | 14.0 | 14.417 | 10 | 20 |
| 006820 | TL-185/14 | 112 | 14.5 | 34.0 | 18.0 | 16.0 | 14.891 | 10 | 20 | ||
| 006830 | TL-185/16 | 113 | 16.5 | 34.0 | 18.0 | 17.0 | 14.746 | 10 | 20 | ||
| 006860 | TL-240/12 | 240 | 21.2 | 114 | 13.0 | 38.4 | 16.0 | 14.0 | 17.324 | 5 | 15 |
| 006870 | TL-240/14 | 118 | 14.5 | 38.4 | 18.0 | 16.0 | 17.978 | 5 | 15 | ||
| 006880 | TL-240/16 | 119 | 16.5 | 38.4 | 18.0 | 17.0 | 17.914 | 5 | 15 | ||
| 006920 | TL-300/16 | 300 | 23.4 | 132 | 16.5 | 41.7 | 19.0 | 18.0 | 22.698 | 6 | 12 |
| 006950 | TL-400/16 | 400 | 26.8 | 140 | 16.5 | 47.8 | 21.0 | 19.0 | 32.130 | 4 | 8 |
| 006980 | TL-500/16 | 500 | 29.8 | 143 | 16.5 | 54.8 | 22.0 | 19.0 | 53.430 | 1 | 7 |
| 006985 | TL-630/16 | 630 | 34.5 | 155 | 16.5 | 64.4 | 22.0 | 19.0 | 85.713 | 1 | 3 |
