10103 T45° Copper cable lug 45°

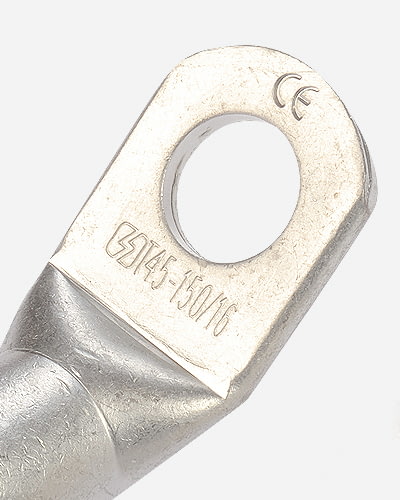

T45° cable lug manufactured from electrolytic copper tubing with a tin-plated surface finish to electrical contact. Its particular orientation makes it suitable for installations where connection needs a specific placement.

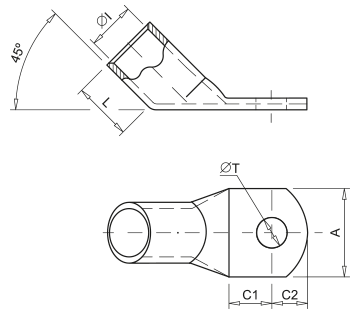

Technical specifications
Download spec sheet| Code | Ref. | Section (mm²) | ØI | L | ØT | A | C1 | C2 | Kg x100 | Bag | Box |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 007270 | T45-10/6 | 10 | 4.7 | 10 | 6.4 | 11.9 | 7.0 | 6.0 | 0.391 | 100 | 800 |
| 007280 | T45-10/8 | 8.3 | 15.0 | 8.0 | 8.0 | 0.400 | 100 | 800 | |||
| 007320 | T45-16/6 | 16 | 5.6 | 11 | 6.4 | 11.9 | 7.0 | 6.0 | 0.518 | 100 | 600 |
| 007330 | T45-16/8 | 8.3 | 15.0 | 8.0 | 7.5 | 0.527 | 100 | 600 | |||
| 007370 | T45-25/8 | 25 | 7.1 | 13 | 8.3 | 15.0 | 8.5 | 7.5 | 0.731 | 50 | 350 |
| 007380 | T45-25/10 | 10.5 | 18.0 | 11.0 | 10.0 | 0.803 | 50 | 350 | |||
| 007420 | T45-35/8 | 35 | 8.7 | 16 | 8.3 | 15.7 | 9.0 | 8.0 | 1.157 | 50 | 250 |
| 007430 | T45-35/10 | 10.5 | 19.0 | 11.0 | 10.0 | 1.219 | 50 | 200 | |||
| 007520 | T45-50/10 | 50 | 9.8 | 19 | 10.5 | 20.0 | 11.0 | 10.0 | 1.822 | 20 | 120 |
| 007530 | T45-50/12 | 13.0 | 21.0 | 13.0 | 12.0 | 1.768 | 20 | 120 | |||
| 007580 | T45-70/10 | 70 | 11.5 | 21 | 10.5 | 21.5 | 11.0 | 10.0 | 2.470 | 20 | 100 |
| 007590 | T45-70/12 | 13.0 | 12.0 | 11.0 | 2.514 | 20 | 100 | ||||
| 007660 | T45-95/14 | 95 | 13.5 | 24 | 14.5 | 24.7 | 15.0 | 13.0 | 3.606 | 20 | 60 |
| 007670 | T45-95/16 | 16.5 | 27.0 | 16.0 | 15.0 | 3.619 | 20 | 60 | |||
| 007720 | T45-120/14 | 120 | 15.6 | 28 | 14.5 | 28.9 | 16.0 | 14.0 | 5.948 | 10 | 50 |
| 007730 | T45-120/16 | 16.5 | 17.0 | 16.0 | 6.260 | 10 | 40 | ||||
| 007770 | T45-150/14 | 150 | 16.5 | 32 | 14.5 | 30.4 | 18.0 | 16.0 | 7.814 | 10 | 40 |
| 007780 | T45-150/16 | 16.5 | 16.0 | 7.618 | 10 | 30 | |||||
| 007830 | T45-185/16 | 185 | 18.8 | 34 | 16.5 | 34.0 | 18.0 | 17.0 | 10.540 | 10 | 20 |
| 007880 | T45-240/16 | 240 | 21.2 | 38 | 16.5 | 38.4 | 18.0 | 17.0 | 13.126 | 5 | 20 |
