10105 TT NF C20-130 Tulip copper cable lug

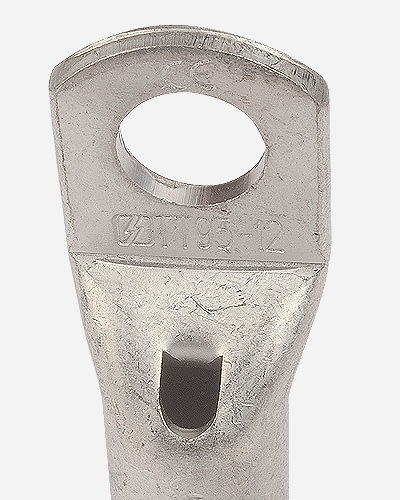

TT cable lug manufactured from electrolytic copper tubing with a tin-plated surface finish to improve electrical contact. The tulip shape at the end of the barrel facilitates the introduction of the cable.
Technical specifications

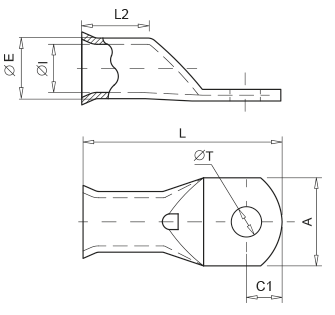

Download spec sheet| Code | Ref. | Section (mm²) | ØE | ØI | L | ØT | A | C1 | L2 | Kg x100 | Bag | Box |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 009220 | TT-6/5 | 6 | 5.5 | 3.3 | 30.50 | 5.3 | 13.0 | 8.0 | 11.0 | 0.243 | 100 | 1200 |
| 009230 | TT-6/6 | 32.50 | 6.5 | 8.0 | 0.366 | 100 | 1000 | |||||
| 009270 | TT-10/6 | 10 | 6.8 | 4.3 | 30.50 | 6.5 | 12.0 | 6.5 | 12.0 | 0.598 | 100 | 800 |
| 009280 | TT-10/8 | 37.00 | 8.5 | 15.0 | 10.0 | 0.485 | 100 | 600 | ||||
| 009320 | TT-16/6 | 16 | 8.0 | 5.3 | 33.30 | 6.5 | 12.0 | 6.3 | 14.0 | 0.712 | 100 | 500 |
| 009330 | TT-16/8 | 37.50 | 8.5 | 16.0 | 8.5 | 0.752 | 100 | 500 | ||||
| 009360 | TT-25/6 | 25 | 9.5 | 6.6 | 36.30 | 6.5 | 13.0 | 6.3 | 15.0 | 0.874 | 50 | 300 |
| 009370 | TT-25/8 | 42.00 | 8.5 | 18.0 | 10.0 | 1.022 | 50 | 300 | ||||
| 009380 | TT-25/10 | 46.00 | 10.5 | 12.0 | 1.139 | 50 | 250 | |||||
| 009420 | TT-35/8 | 35 | 11.0 | 7.9 | 44.00 | 8.5 | 17.0 | 10.0 | 17.0 | 1.591 | 50 | 200 |
| 009430 | TT-35/10 | 49.00 | 10.5 | 12.0 | 1.592 | 50 | 200 | |||||
| 009510 | TT-50/8 | 50 | 12.5 | 9.2 | 47.00 | 8.5 | 18.0 | 10.0 | 19.0 | 2.109 | 20 | 140 |
| 009520 | TT-50/10 | 52.00 | 10.5 | 12.0 | 2.264 | 20 | 140 | |||||
| 009530 | TT-50/12 | 54.00 | 13.0 | 13.0 | 2.101 | 20 | 120 | |||||
| 009570 | TT-70/8 | 70 | 15.0 | 11.0 | 51.00 | 8.5 | 21.0 | 10.0 | 21.0 | 2.241 | 20 | 100 |
| 009580 | TT-70/10 | 55.00 | 10.5 | 21.0 | 12.0 | 3.357 | 20 | 80 | ||||
| 009590 | TT-70/12 | 59.00 | 13.0 | 22.0 | 13.0 | 3.449 | 20 | 80 | ||||
| 009640 | TT-95/10 | 95 | 17.0 | 13.1 | 60.00 | 10.5 | 25.0 | 12.0 | 22.0 | 4.518 | 20 | 60 |
| 009650 | TT-95/12 | 62.00 | 13.0 | 13.0 | 4.292 | 20 | 60 | |||||
| 009660 | TT-95/14 | 66.50 | 15.0 | 14.5 | 4.354 | 20 | 60 | |||||
| 009670 | TT-95/16 | 70.00 | 17.0 | 16.0 | 4.714 | 20 | 60 | |||||
| 009710 | TT-120/12 | 120 | 19.0 | 14.5 | 66.00 | 13.0 | 28.0 | 13.0 | 26.0 | 6.544 | 10 | 50 |
| 009720 | TT-120/14 | 69.50 | 15.0 | 14.5 | 5.972 | 10 | 50 | |||||
| 009730 | TT-120/16 | 72.00 | 17.0 | 16.0 | 6.198 | 10 | 50 | |||||
| 009760 | TT-150/12 | 150 | 21.0 | 16.2 | 73.00 | 13.0 | 30.0 | 15.0 | 30.0 | 8.578 | 10 | 40 |
| 009770 | TT-150/14 | 73.00 | 15.0 | 15.0 | 8.069 | 10 | 40 | |||||
| 009780 | TT-150/16 | 75.00 | 17.0 | 16.0 | 7.865 | 10 | 40 | |||||
| 009810 | TT-185/12 | 185 | 23.0 | 18.0 | 81.00 | 13.0 | 33.5 | 16.0 | 32.0 | 10.255 | 10 | 40 |
| 009830 | TT-185/16 | 87.00 | 17.0 | 19.0 | 10.596 | 10 | 30 | |||||
| 009860 | TT-240/12 | 240 | 26.0 | 20.6 | 93.50 | 13.0 | 38.0 | 21.5 | 35.0 | 14.383 | 5 | 25 |
| 009880 | TT-240/16 | 93.50 | 17.0 | 21.5 | 14.240 | 5 | 25 | |||||
| 009920 | TT-300/16 | 300 | 28.0 | 23.0 | 102.00 | 17.0 | 41.0 | 19.0 | 44.0 | 16.270 | 5 | 10 |
| 009950 | TT-400/16 | 400 | 32.0 | 26.0 | 115.00 | 17.0 | 46.5 | 19.0 | 44.0 | 26.819 | 4 | 8 |
