10104 T90° Copper cable lug 90°

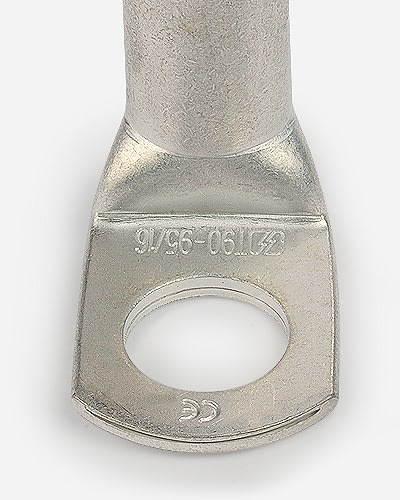

T90° cable lug manufactured from electrolytic copper tubing with a tin-plated surface finish to electrical contact. Its particular orientation makes it suitable for installations where connection needs a specific placement.
Technical specifications

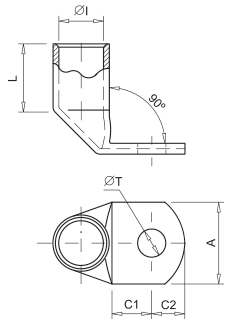

Download spec sheet| Code | Ref. | Section (mm²) | ØI | L | ØT | A | C1 | C2 | Kg x100 | Bag | Box |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 008270 | T90-10/6 | 10 | 4.7 | 10 | 6.4 | 11.9 | 7.0 | 6.0 | 0.374 | 100 | 800 |
| 008280 | T90-10/8 | 8.3 | 15.0 | 8.0 | 8.0 | 0.396 | 100 | 700 | |||
| 008290 | T90-10/10 | 10.5 | 18.0 | 11.0 | 10.0 | 0.444 | 100 | 100 | |||
| 008320 | T90-16/6 | 16 | 5.6 | 11 | 6.4 | 11.9 | 7.0 | 6.0 | 0.500 | 100 | 600 |
| 008330 | T90-16/8 | 8.3 | 15.0 | 8.0 | 7.5 | 0.509 | 100 | 600 | |||
| 008370 | T90-25/8 | 25 | 7.1 | 13 | 8.3 | 15.0 | 8.5 | 7.5 | 0.768 | 50 | 300 |
| 008380 | T90-25/10 | 10.5 | 18.0 | 11.0 | 10.0 | 0.813 | 50 | 300 | |||
| 008420 | T90-35/8 | 35 | 8.7 | 16 | 8.3 | 15.7 | 9.0 | 8.0 | 1.295 | 50 | 250 |
| 008430 | T90-35/10 | 10.5 | 19.0 | 11.0 | 10.0 | 1.157 | 50 | 200 | |||
| 008520 | T90-50/10 | 50 | 9.8 | 19 | 10.5 | 20.0 | 11.0 | 10.0 | 1.788 | 20 | 160 |
| 008530 | T90-50/12 | 13.0 | 21.0 | 13.0 | 12.0 | 1.983 | 20 | 160 | |||
| 008580 | T90-70/10 | 70 | 11.5 | 21 | 10.5 | 21.5 | 11.0 | 10.0 | 2.586 | 20 | 100 |
| 008590 | T90-70/12 | 13.0 | 12.0 | 11.0 | 2.614 | 20 | 100 | ||||
| 008660 | T90-95/14 | 95 | 13.5 | 24 | 14.5 | 24.7 | 15.0 | 13.0 | 3.737 | 20 | 60 |
| 008670 | T90-95/16 | 16.5 | 27.0 | 16.0 | 15.0 | 3.730 | 20 | 60 | |||
| 008720 | T90-120/14 | 120 | 15.6 | 28 | 14.5 | 28.9 | 16.0 | 14.0 | 6.350 | 10 | 30 |
| 008730 | T90-120/16 | 16.5 | 17.0 | 16.0 | 6.508 | 10 | 30 | ||||
| 008770 | T90-150/14 | 150 | 16.5 | 32 | 14.5 | 30.4 | 18.0 | 16.0 | 8.000 | 10 | 30 |
| 008780 | T90-150/16 | 16.5 | 18.0 | 16.0 | 7.860 | 10 | 30 | ||||
| 008830 | T90-185/16 | 185 | 18.8 | 34 | 16.5 | 34.0 | 18.0 | 17.0 | 10.850 | 10 | 20 |
| 008880 | T90-240/16 | 240 | 21.2 | 38 | 16.5 | 38.4 | 18.0 | 17.0 | 13.630 | 5 | 15 |
