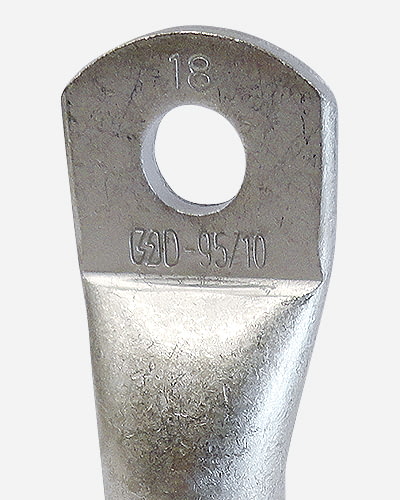

10113 TCD DIN 46235 copper cable lug
TCD cable lug manufactured from electrolytic copper with a tin-plated surface finish to improve electrical contact.
Technical specifications

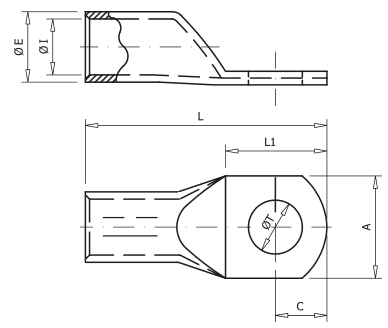

Download spec sheet| Code | Ref. | Section (mm²) | ØE | ØI | L | ØT | A | L1 | C | Kg x100 | Bag | Box |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 005270 | TCD-10/6 | 10 | 6.0 | 4.5 | 37.5 | 6.4 | 9.0 | 19.5 | 9.5 | 0.350 | 100 | 700 |
| 005280 | TCD-10/8 | 40.0 | 8.4 | 13.0 | 21.0 | 11.0 | 0.354 | 100 | 600 | |||
| 005320 | TCD-16/6 | 16 | 8.5 | 5.5 | 46.5 | 6.4 | 13.0 | 18.5 | 9.5 | 1.194 | 50 | 250 |
| 005330 | TCD-16/8 | 49.0 | 8.4 | 13.0 | 23.0 | 11.0 | 1.206 | 50 | 250 | |||
| 005370 | TCD-25/8 | 25 | 10.0 | 7.0 | 51.0 | 8.4 | 16.0 | 23.0 | 12.0 | 1.551 | 50 | 200 |
| 005380 | TCD-25/10 | 53.0 | 10.5 | 17.0 | 27.0 | 14.0 | 1.543 | 50 | 200 | |||
| 005420 | TCD-35/8 | 35 | 12.5 | 8.2 | 55.0 | 8.4 | 17.5 | 23.0 | 12.0 | 3.010 | 20 | 120 |
| 005430 | TCD-35/10 | 57.0 | 10.5 | 19.0 | 27.0 | 14.0 | 2.997 | 20 | 120 | |||
| 005520 | TCD-50/10 | 50 | 14.5 | 10 | 67.0 | 10.5 | 22.0 | 27.0 | 14.0 | 4.497 | 20 | 100 |
| 005530 | TCD-50/12 | 68.0 | 13.0 | 24.0 | 29.0 | 15.0 | 4.403 | 20 | 100 | |||
| 005580 | TCD-70/10 | 70 | 16.5 | 11.5 | 70.0 | 10.5 | 24.0 | 27.0 | 14.0 | 6.029 | 20 | 60 |
| 005590 | TCD-70/12 | 71.0 | 13.0 | 24.0 | 27.0 | 14.0 | 6.065 | 20 | 60 | |||
| 005650 | TCD-95/12 | 95 | 19.0 | 13.5 | 78.0 | 13.0 | 28.0 | 26.0 | 13.0 | 8.373 | 10 | 40 |
| 005660 | TCD-95/14 | 79.5 | 15.0 | 32.0 | 29.0 | 14.5 | 8.357 | 10 | 40 | |||
| 005670 | TCD-95/16 | 81.0 | 17.0 | 32.0 | 32.0 | 16.0 | 8.596 | 10 | 40 | |||
| 005700 | TCD-120/10 | 120 | 21.0 | 15.5 | 85.0 | 10.5 | 30.0 | 27.0 | 14.0 | 10.728 | 10 | 30 |
| 005710 | TCD-120/12 | 86.0 | 13.0 | 30.0 | 29.0 | 15.0 | 10.436 | 10 | 30 | |||
| 005720 | TCD-120/14 | 88.0 | 15.0 | 30.0 | 31.0 | 16.0 | 10.820 | 10 | 30 | |||
| 005730 | TCD-120/16 | 89.0 | 17.0 | 30.0 | 35.0 | 18.0 | 10.650 | 10 | 30 | |||
| 005760 | TCD-150/12 | 150 | 23.5 | 17.0 | 94.0 | 13.0 | 34.0 | 29.0 | 15.0 | 13.374 | 10 | 20 |
| 005770 | TCD-150/14 | 96.0 | 15.0 | 34.0 | 31.0 | 16.0 | 15.514 | 10 | 20 | |||
| 005780 | TCD-150/16 | 97.0 | 17.0 | 34.0 | 35.0 | 18.0 | 15.436 | 10 | 20 | |||
| 005810 | TCD-185/12 | 185 | 25.5 | 19.0 | 98.0 | 13.0 | 37.0 | 29.0 | 15.0 | 18.167 | 10 | 20 |
| 005820 | TCD-185/14 | 100.0 | 15.0 | 37.0 | 31.0 | 16.0 | 17.852 | 10 | 20 | |||
| 005830 | TCD-185/16 | 101.0 | 17.0 | 37.0 | 35.0 | 18.0 | 18.227 | 10 | 20 | |||
| 005860 | TCD-240/12 | 240 | 29.0 | 21.5 | 108.0 | 13.0 | 42.0 | 29.0 | 15.0 | 25.766 | 5 | 10 |
| 005870 | TCD-240/14 | 110.0 | 15.0 | 42.0 | 31.0 | 16.0 | 25.780 | 5 | 10 | |||
| 005880 | TCD-240/16 | 111.0 | 17.0 | 42.0 | 35.0 | 18.0 | 26.587 | 5 | 10 | |||
| 005920 | TCD-300/16 | 300 | 32.0 | 24.5 | 119.0 | 17.0 | 48.0 | 35.0 | 18.0 | 31.472 | 5 | 10 |
| 005950 | TCD-400/16* | 400 | 38.5 | 27.5 | 140.0 | 17.0 | 55.0 | 45.0 | 24.0 | 53.380 | 2 | 4 |
| 005980 | TCD-500/16* | 500 | 42.0 | 31.0 | 150.0 | 17.0 | 60.0 | 45.0 | 24.0 | 78.187 | 1 | 4 |
